Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Type: Multi-Function Packaging Machine

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Construction worksÂ , Food & Beverage Shops, pharmaceutical

Weight (KG): 500

Showroom Location: United States, Pakistan, Colombia

Condition: New

Function: FILLING, Labeling, Laminating, Sealing, SLITTING

Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco, pharmaceutical

Packaging Type: Bags, Film, Pouch

Packaging Material: Plastic

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220V 50 Hz

Dimension(L*W*H): 4500*1500*2900MM

Warranty: 5 years

Key Selling Points: High Productivity

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 5 years

Core Components: Motor, Pressure vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox

Production Capacity: 40bag/min, 25bag/min, 50bag/min, 30bag/min, 100bag/min

Product name: LTWP-100

Packing Range: 10-1000G

Single bucket volume: 1.3 L

Packing accuracy: 0.1-1.0g

Drive method: Stepping Motor

Surface: dimple

Making size(Width): 80-200MM

Making size(Length): 80-3.50MM

Packing Speed: 40-100bag/min

Power: 220V/50HZ

Grundinformation

Zahlung und Versand AGB

Produkt-Beschreibung

Please Tell Me：

What is your product? What kind of packaging bag do you want? And more of your request？ We will give you a packaging machine that suits you.

Products Description

The automatic packaging machinery to complete the bag, measuring, filling, nitrogen, play yards, cut bags and so on. Suitable for packaging solid granular materials, such as candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.

Packing Range

Vertical Automatic Packaging Machine with different feeder can package different products, such as Solid, Granule, Powder, Liquid etc.

-- Solid: candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc. -- Granule: grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc. -- Powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc. -- Liquid:Honey, ketchup, chocolate sauce, barbecue sauce etc.

-- Various bag types: all type of side seal bags, e.g. pouch, back-sealing bag, linking bags,etc.

Various bag types:

Standard bag, Sawtooth bag, Vertical perforated bag, Horizontal perforated bag, 3-side sealing bag, 4-side sealing bag, Hot-side standing bag, Perforated standing bag

Applicable packaging film consumables

Suitable for composite film and various colors of aluminized film, non-woven fabric and filter paper

Machine Data

Model	LTWP-320	LTWP-420	LTWP-520
Bag Size Length	60-250mm	60-300mm	80-350mm
Bag Size Weight	50-150mm	60-200mm	80-250mm
Packaging Speed	40-100/min	35-80/min	30-80/min
Power Supply	220V , 50/60Hz	220V , 50/60Hz	220V , 50/60Hz
power	3.0Kw	3.0Kw	4.0Kw
Pressure	6-8kg/㎡	6-8kg/㎡	6-8kg/㎡
Gas Consumption	0.3m³/min	0.3m³/min	0.3m³/min
Weight	300kg	350kg	350kg
Size	140010001200mm	165011001500mm	165012001600mm

Model	LTWP-620	LTWP-820	LTWP-1250
Bag Size Length	100-400mm	120-500mm	150-800mm
Bag Size Weight	100-300mm	120-400mm	150-600mm
Packaging Speed	30-70/min	20-60/min	5-30/min
Power Supply	220V , 50/60Hz	220V , 50/60Hz	220V , 50/60Hz
power	4.0Kw	4.0Kw	4.0Kw
Pressure	6-8kg/㎡	6-8kg/㎡	6-8kg/㎡
Gas Consumption	0.3m³/min	0.3m³/min	0.3m³/min
Weight	400kg	450kg	500kg
Size	180013001750mm	205016002050mm	212820572385mm

Details Images

01.

- The material contact with the container material are food grade SUS304.

02.

- External film release mechanism is adopted to facilitate the installation of packaging film.

- Imported film transport system, imported color standard sensor, accurate positioning.

03.

- The film is controlled by servo motor to realize high precision positioning and accurate size.

04.

- Vertical sealing and sealing process, automatic adjustment of deviation, greatly reducing labor intensity.

Features

-- 1.New design, beautiful appearance, more reasonable structure, more advanced technology. -- 2.The production line supporting machinery in addition to marked materials are stainless steel, all machine structures are in accordance with food hygiene standards selected design. -- 3.Often dismantling the structure are easy to dismantle the connection, to ensure that the shift or change the product when dealing with health convenience. -- 4.Multiple automatic alarm protection functions to minimize damage. -- 5.Touch screen and stable and reliable PLC control, bag-making, metering, filling, sealing, coding, bag-cutting one-time completion. -- 6.External film release mechanism is adopted to facilitate the installation of packaging film.

Warm hint:

1 -- Because the exchange rate is changing, the specific price of the machine will also change. 2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution. 3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.

Q1: How many different type of bags your machine can work with?

A: Four side seal pouch, Three side seal pouch, Back side seal pouch, Zipper bag, Self stand-up pouch, Irregular premade bags, etc.

Q2: How many different product your machine can work with?

A: Our machine can work for all kinds of products that client want to pack into Premade Bags by changing Feeder. Such as, Liquid, Paste, Powder, Granular, Biscuits, Rice, pop corn, Sea food, cosmetic, etc.

Q3: What we should do when we have different sizes of bags, do we need any change parts?

A: No need to buy any change parts. Before we ship the machine to client, we will commission the machine with all different product sample from client, then save the data as a receipt in PLC. When the client is going to use different sizes, just read out the data, then the machine will have the correct size to catch the bag.

Q4: what is your annually production capacity for Rotary Packing Machine?

A: We ship More Than 20sets rotary packing machine every month, totally around 300sets per year. We are expanding our facility in 2020, aim for 500sets in 2021. Our clients include Pharmaceutical Factory, Food factory and Cosmetic factory.

Q5: What is the warranty period for your machine?

A: 5 years free warranty.

Q6: Do you have manual or operation video for us to know more about the machine? A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market. Q7: How can I trust you for the first time business ? A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality. Q8: Is engineer available to serve oversea? A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end. Q9: How can we make sure about the machine quality after we put the order? A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

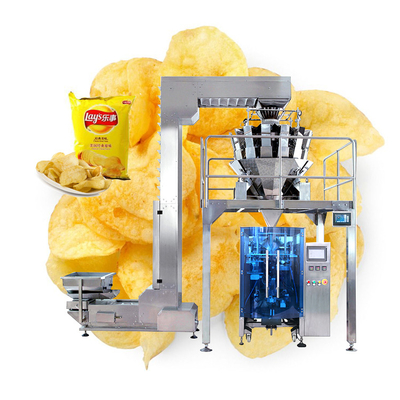

Automatic Potato Chips Puffy Food Fries Food Shrimp Weighing Packing Machine with Nitrogen Filling Function
